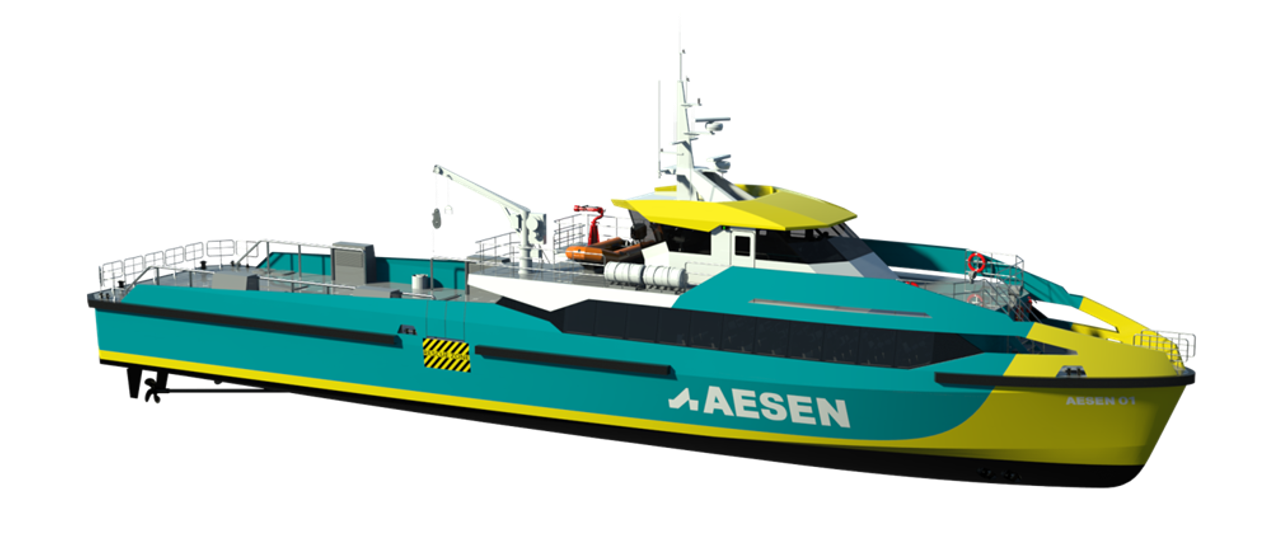

| 42m hybrid crewboat
next generation hybrid offshore crewboat
Courtesy of Cheoy Lee Shipyards and Aesen Pte Ltd
Our collaboration with industry experts at Aesen, Cheoy Lee Shipyards, ZF Asia Pacific, and Gennal Engineering has produced a state-of-the-art hybrid crew boat, marking a significant advancement in offshore crew boat technology.
The vessel and its hybrid propulsion system are purpose-built for offshore in-field operations and deliver exceptional energy efficiency. This system achieves substantial fuel savings and a significant reduction in CO2 emissions.
PRINCIPAL particulars
DIMENSION
L.O.A : 42.00 m
Beam : 8.00 m
Draft : 1.96 m
Operating Speed
8~20 knots
Slow Speed @ dIELSEL- ELECTRIC MODE
5~8 knots
Slow Speed @ ZERO EMISSION MODE
4~6 knots
main engine
2x Caterpillar C32, 1081 kW@2300rpm
gearbox
2x ZF 335 PTI
Hybrid System
2x E-Machines mounted on the gearbox PTI/PTO and energy storage system.
Fully integrated hybrid propulsion system with power management, energy management, and a battery management system.
Propulsion
2x Fixed-pitch propellers
Diesel generators
3x Cat C4.4, 86 ekW
Hull & Superstructure
Aluminium Construction
Hybrid vessel delivers superior fuel efficiency
The vessel features an intelligent energy management system and multiple layers of power redundancy to ensure essential functions and operational reliability.
We engineered this vessel to reduce fuel consumption by 20 to 40 per cent compared to conventional crew boats operating under similar conditions. Our integrated hybrid propulsion technology and energy storage system optimise engine loading and power use, reducing fuel consumption and emissions while maintaining the performance needed for demanding offshore operations.
